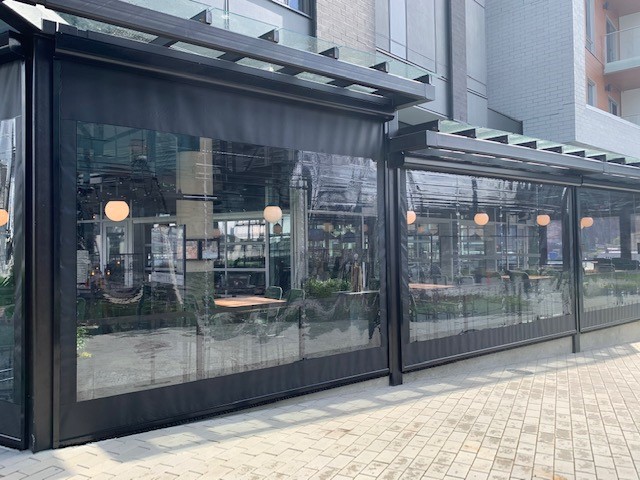

SmartScreen™Motorized
The ultimate solution for large outdoor living spaces. Features weighted bottom bars and vertical tracks that "lock" mesh in place.
MAX SPAN: 22.5 Feet
MAX HEIGHT: 16 Feet
CONTROL: Remote / Smart Hub

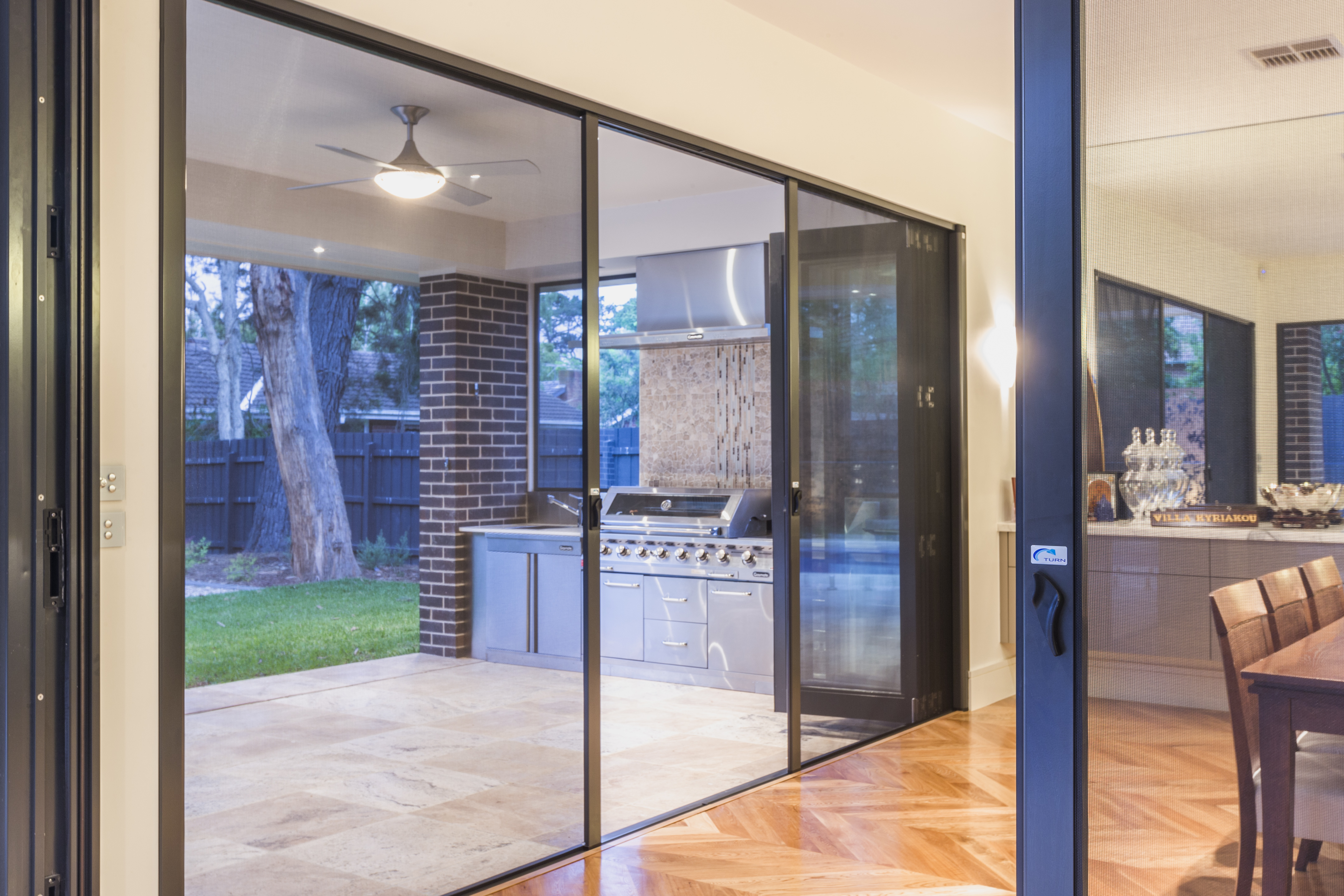

VistaView™&VistaViewPlus™Wide-Span
Specifically engineered for large folding door systems. Features a unique captured mesh system to prevent blow-outs.
MAX SPAN: 28 Feet (VistaViewPlus Models)
MAX HEIGHT: 11 Feet
DRIVE: Manual Smooth-Glide

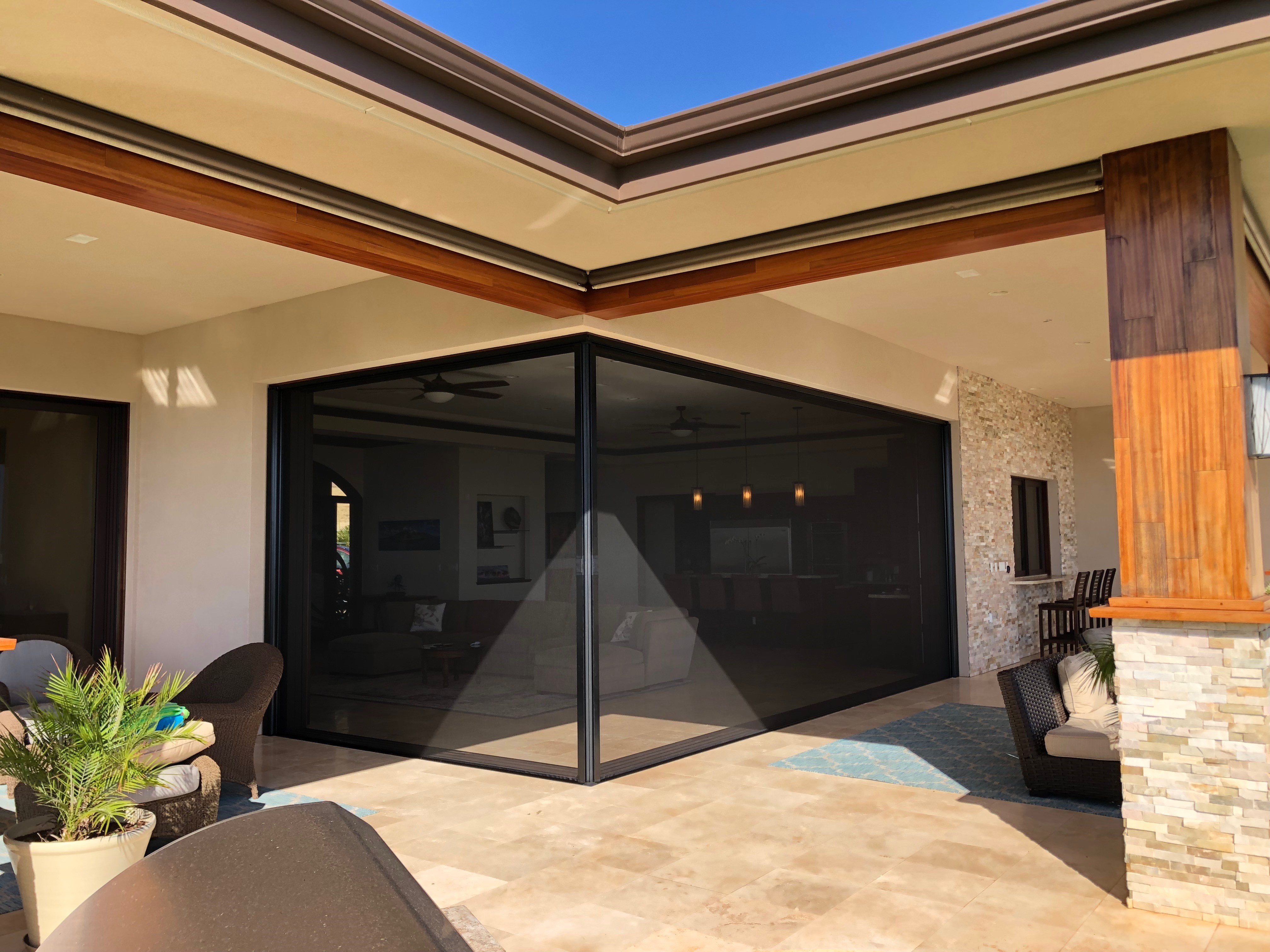

Horizon™Corner System
Elite solution for wrapping corners without a vertical post. Perfect for L-shaped patios and outdoor kitchens.
MAX SPAN: 40 Feet (Total)
MAX HEIGHT: 12 Feet
TECH: Dual-Motor Sync

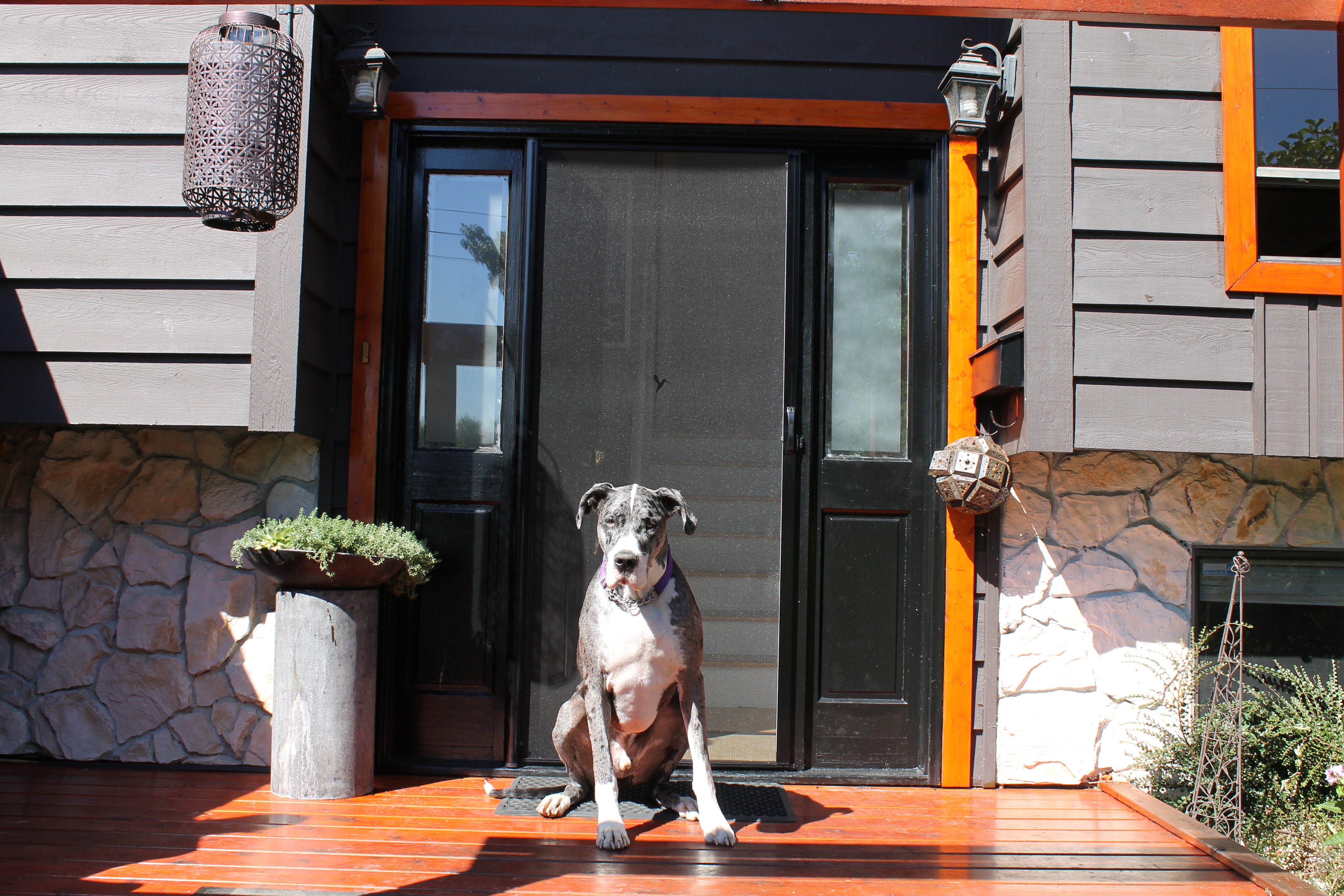

RetractaView™Premium Door
Low-profile retractable screen for standard doors. Features speed-reducer for safe, controlled retraction.
MAX SPAN: 9 Feet
MAX HEIGHT: 10 Feet
HOUSING: 1.75" Aluminum

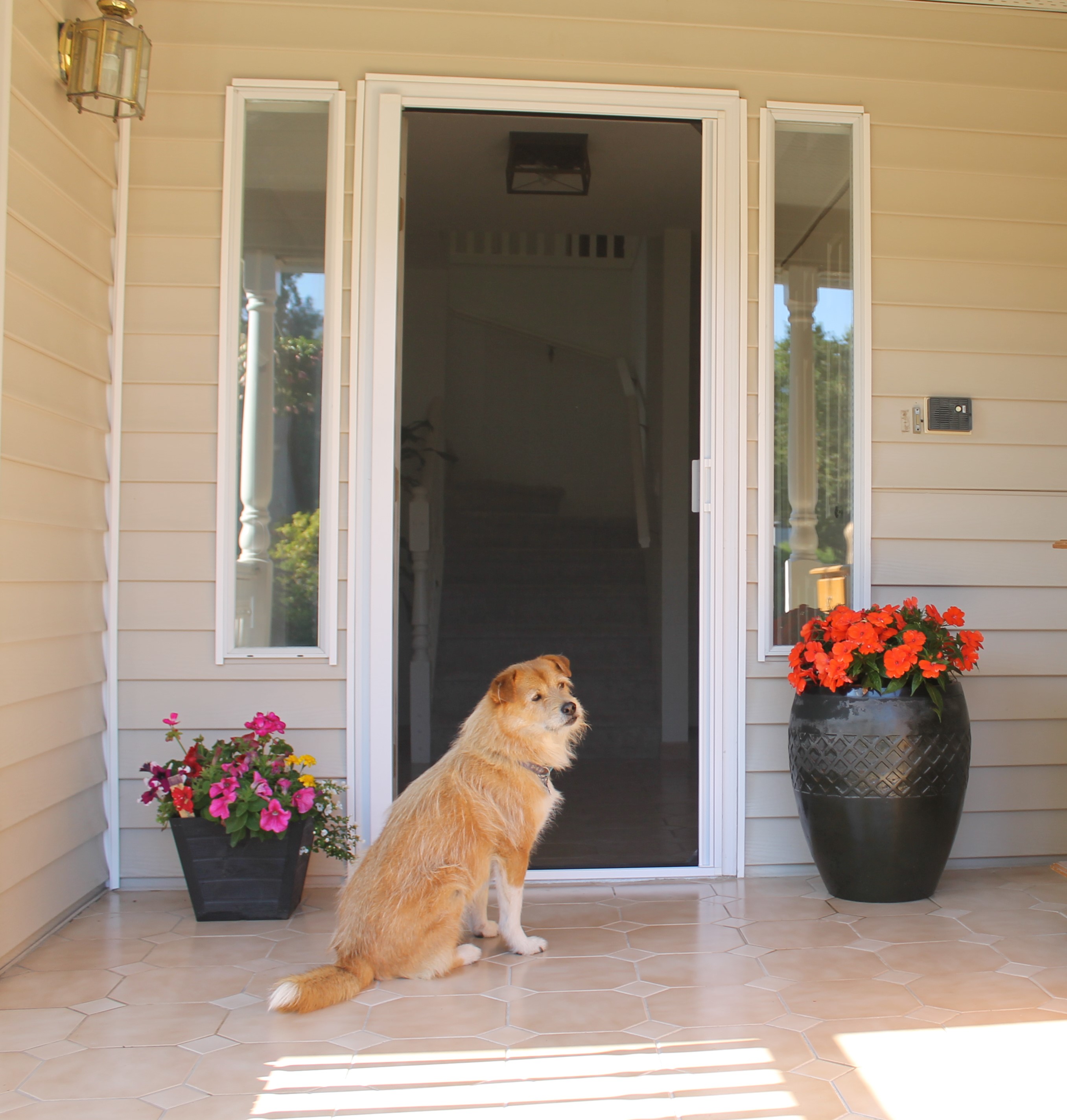

BetterView™High-Vis
High-transparency mesh for protection without losing the view. 20% better airflow than standard mesh.
MAX SPAN: 5 Feet
MAX HEIGHT: 8 Feet
MESH: Ultra-Fine Phifer
Systems & Technical Specs
| System | Max Span | Housing Size | Primary Use | Technical Note | Technical Manual (TM) |
|---|---|---|---|---|---|
| SmartScreen™ | 30' Wide | 5.5" or 7.1" Square | Patios / Garages | 4" Stone clearance required at top | View Manual ▾ |
| VistaView™ | 29' Wide | 60mm / 70mm / 80mm | Bifold / Stacking Doors | Patented Auto-Stop braking | View Manual ▾ |
| Horizon™ | 43' Wide | 80mm / 100mm | 90° Corner Openings | 4.5" Handle offset required | View Manual ▾ |
| RetractaView™ | 110" Wide | 1.75" Slim | Standard Entry Doors | On-site "One-Cut" sizing | |
| BetterView™ | 6' Wide | 55mm Compact | Windows / Servery | 20% More airflow vs standard | View Manual ▾ |
